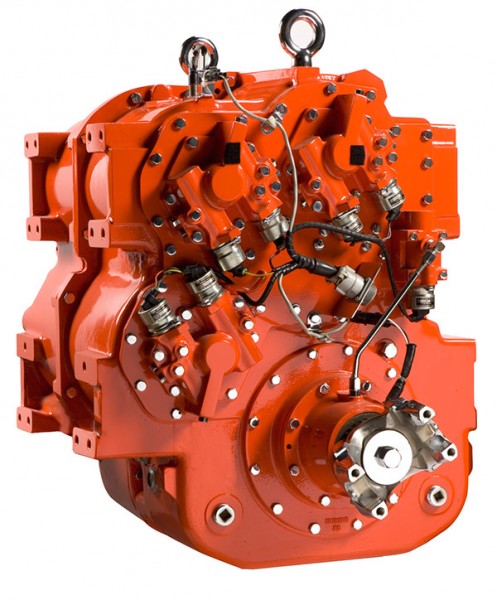

TD61-1180 ARFF

TD61-1180 – UP TO 705 HP (526 kW)

The 1180 transmission system consists of an engine mounted 17.5 or 18.5 inch type 8 torque converter, a 6 speed power-shift transmission and an advanced electronic control system.

Specifications

• Maximum gross input power (ARFF only) 705 hp (526 kW) @ 2100 RPM
• Maximum gross input torque (ARFF only) 1907 lb-ft (2585 Nm)
• Maximum input speed 2300 RPM
• Weight 1700 lbs. (770 kg)
• Maximum oil temperature at converter outlet 250Ëš F
• Sump capacity 7 USG (26.5 liters)
• Cooling required ~25% of GHP
• Cooling pump capacity ~46.5 GPM @ 2100 RPM
• Remote mounted
• 30-70, 50-50, 70-30 with differential lock
• TD61-1180 output rotation opposite engine for forward

RATIOS
