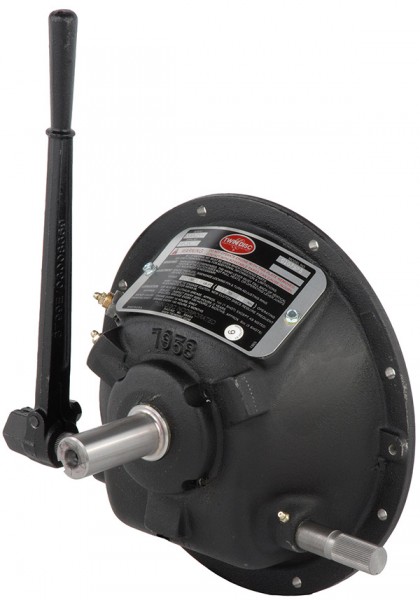

Twin Disc CX108P CX106P, CX107P, CX108P & CX110P Available in sizes 6.5″ through 11.5″ Ball type main bearing Cr.. Product #: CX108P based on 0 reviews

CX108P

Brand: Twin Disc
Product Code: CX108P
- +

CX106P, CX107P, CX108P & CX110P

  • Available in sizes 6.5″ through 11.5″
  • Ball type main bearing
  • Creates suitable application torque capacity
  • Optional sintered iron plates*
  • Built-in hex nut
  • Suitable for in-line and side load applications
  • Creates 25% higher torque capacity*
  • Eases adjustment verification

* Not available on the CX106 and CX107
PTO Application Data Sheet (157k pdf)

SPECIFICATIONS – CX106P & CX107P

Model NumberSAE HousingMax. Input Torque
Nm (lb-ft)
Maximum Safe SpeedWeight
kg (lbs)
CX106P4, CX106P5, CX106P6 4, 5, 6 216 (159) 3500 24 (53)
CX107P4, CX107P5, CX107P6 4, 5, 6 237 (175) 3200 25 (55)

SPECIFICATIONS – CX108P & CX110P

Model NumberSAE
Housing
Max. Input Torque
Nm (lb-ft)
Maximum Safe SpeedWeight
kg (lbs)
Solid Plates Split Plates
Organic Sintered Cast
Drive Ring
Nodular
Drive Ring
Cast
Drive Ring
Nodular
Drive Ring
CX108P3, CX108P4, CX108P5 3, 4, 5 312 (230) 387 (285) 3100 3100 3050 3100 33 (72)
CX110P1, CX110P2, CX110P3, CX110P4 1, 2, 3, 4 448 (330) 556 (410) 3100 3930 2650 3500 52 (115)

DIMENSIONS
