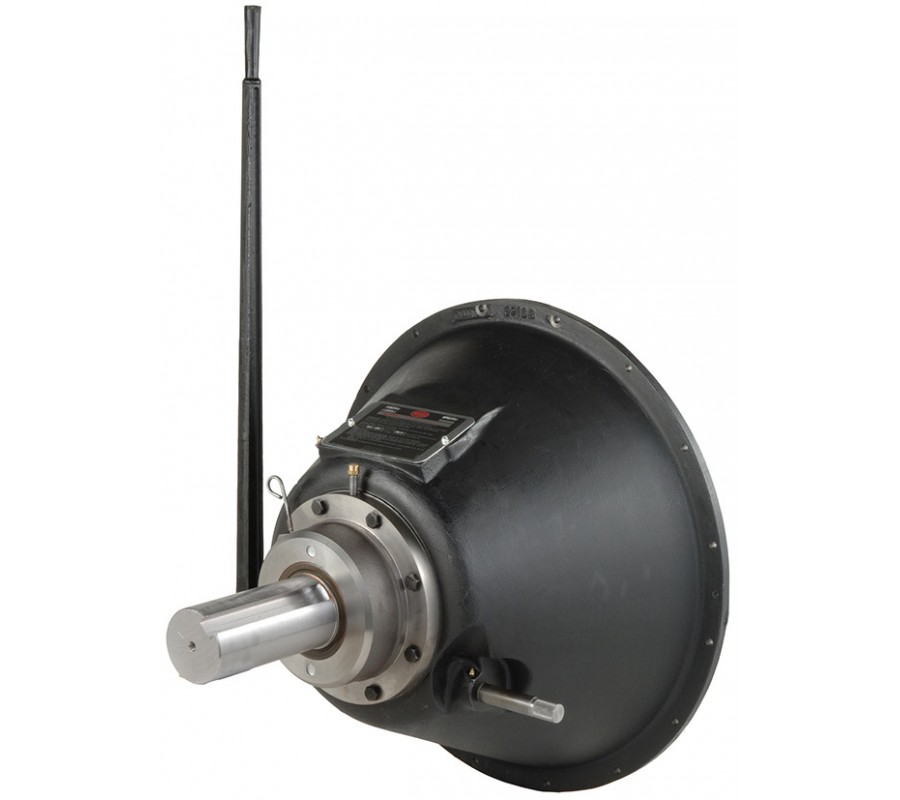

Twin Disc IB 321IL Sealed-for-life pilot bearing Ventilated center plates and drive ring Optional sintered iron pla.. Product #: IB 321IL based on 0 reviews

IB 321IL

Brand: Twin Disc
Product Code: IB 321IL
- +
  • Sealed-for-life pilot bearing
  • Ventilated center plates and drive ring
  • Optional sintered iron plates
  • Buit-in hex nut
  • Less maintenance
  • Improved heat dissipation
  • Creates 25% higher torque capacity
  • Eases adjustment verification

PTO Application Data Sheet (157k pdf)

SPECIFICATIONS

Model NumberSAE HousingMax. Input Torque
Nm (lb-ft)
Maximum
Safe Speed
Weight
kg (lbs)
Solid Plates Split Plates
Organic Sintered Cast
Drive Ring
Nodular
Drive Ring
Cast
Drive Ring
Nodular
Drive Ring
IB321IL 00 9132 (6730) 11398 (8400) N/A 2200 N/A N/A 549 (1210)

DIMENSIONS
