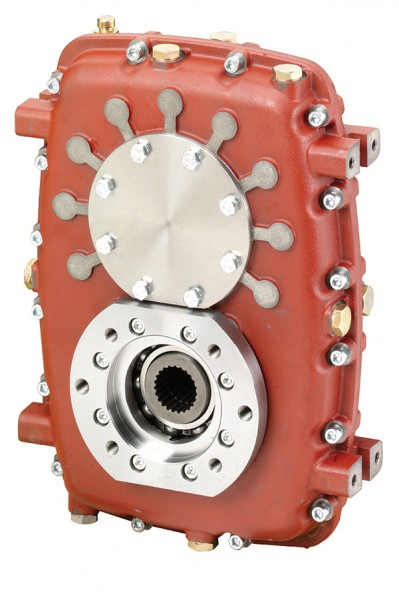

AM 110 Pump Drive
Maximum Input Power 180 kW (242 hp)
1:1 ratio @ 3200 rpm
- Cast iron housings
- Case hardened and ground spur gears
- Ball bearings
- Case hardened shafts
- Viton seals on input shaft
- Output rotation opposite the direction of input rotation
- Gear ratios identical on all outputs
- Maximum input torque based on theoretically unlimited gear life and a minimum L10 bearing life of 10,000 hours
TECHNICAL DATA
| Ratio :1 | MAXIMUM INPUT TORQUE N-m (lbf-ft) | MAX. OUTPUT TORQUE PER PUMP PAD N-m (lbf-ft) | MAXIMUM INPUT SPEED RPM | MAXIUM OUTPUT SPEED RPM | OIL QUANTITY L (gal) |
|---|---|---|---|---|---|
| 0.49 | 735 (542) | 360 (266) | 2400 | 4898 | 2.3 (0.61) |
| 0.58 | 705 (520) | 410 (302) | 2500 | 4310 | 2.1 (0.55) |
| 0.67 | 675 (498) | 450 (332) | 2650 | 3955 | 1.9 (0.50) |
| 0.77 | 635 (468) | 490 (361) | 2850 | 3701 | 1.8 (0.48) |
| 0.83 | 600 (442) | 500 (369) | 3000 | 3614 | 1.8 (0.48) |
| 1.00 | 540 (398) | 540 (398) | 3200 | 3200 | 1.6 (0.42) |
| 1.30 | 490 (361) | 640 (472) | 3600 | 2769 | 1.3 (0.34) |
| 1.50 | 450 (332) | 675 (498) | 3600 | 2633 | 1.1 (0.29) |
DIMENSIONS
