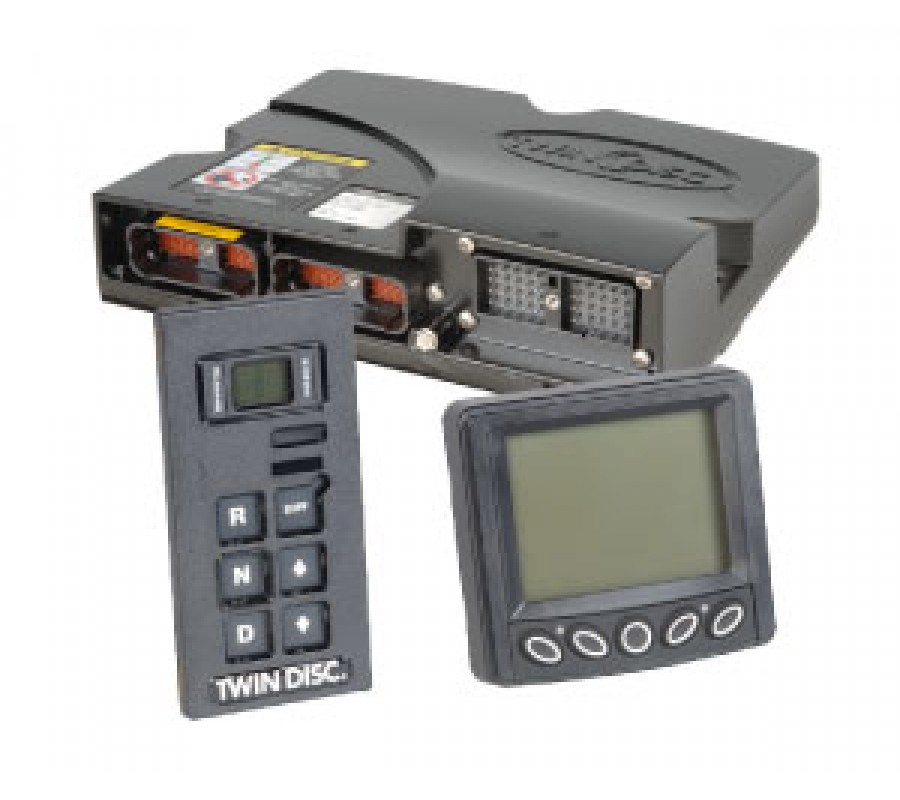

TDEC-050

ELECTRONIC CONTROL MODULE
FOR HYDRAULIC POWER TAKE OFFS (HPTOs)

To ensure precision, Twin Disc HPTO products use proportional solenoids for engaging the HPTO clutch and brake. As proportional solenoids cannot be directly connected to battery power, these HPTOs are supplied with a TDEC-050 Control Module to provide user interfaces.

• Operate from 12VDC or 24VDC battery power
• Operating temperature range: -40 to 70 degrees C
• Option to wire clutch engagement commands as switch signals or J1939 messages
• J1939 CANBus interface includes operating status messages from the TDEC-050
• LED Indicators for providing operational status as well as fault codes, including battery power monitoring
• Warning relay output for fault conditions
• Monitoring of engine speed to protect clutch during engagement process
• Monitoring of engine speed and output speed for controlled engagement process, to help ensure precise clutch engagement without overloading the engine or damaging the clutch
• Integrated brake control
• Monitoring of main and clutch oil pressures, temperature and filter (if applicable)
