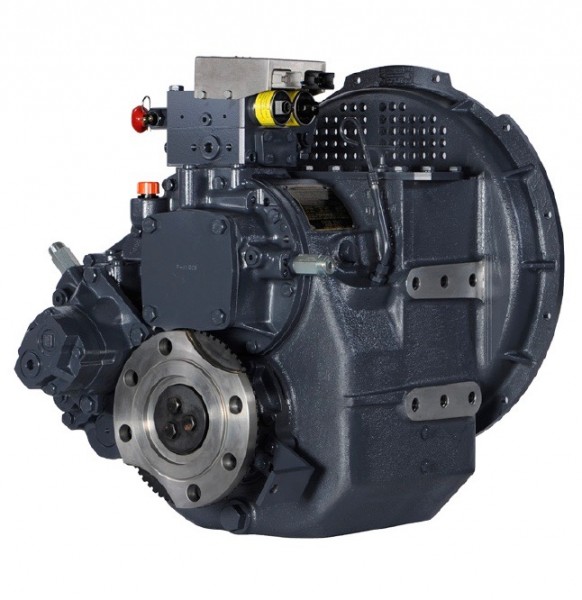

Twin Disc MGX-5114SC Standard Equipment Vertical offset, aluminum housing SAE J617 housing no. 1 Electric GP-valve w.. Product #: MGX-5114SC based on 0 reviews

MGX-5114SC

Brand: Twin Disc
Product Code: MGX-5114SC
- +

Standard Equipment

  • Vertical offset, aluminum housing
  • SAE J617 housing no. 1
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Oil strainer and oil filter

Options

  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Input flange for freestanding installation
  • Mechanical control valve
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Oil cooler with thermostatic bypass valve
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm)
    • SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt, max. 209 Nm)
    • SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt, max. 338 Nm)
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

Reduction RatiosPleasure CraftLight DutyIntermediate DutyMedium DutyContinuous Duty
:1@ 2300 RPM@ 2300 RPM@ 2100 RPM@ 1800 RPM@ 1800 RPM
0.93, 1.02, 1.12
1.50, 1.74, 2.04

673 kW

(902 hp)

629 kW

(843 hp)

504 kW

(676 hp)

394 kW

(528 hp)

358 kW

(480 hp)

2.54

466 kW

(625 hp)

3.00

578 kW

(775 hp)

540 kW

(724 hp)

451 kW

(605 hp)

361 kW

(484 hp)

328 kW

(440 hp)

* Ratings shown for use with standard right hand rotation engines. The maximum allowable rated engine speed is 3000 rpm

DIMENSIONS & WEIGHT

Vertical Offset
C 190 mm (7.47”)
S 161 mm (6.33”)
F 483 mm (19.00”)
L 279 mm (11.00”)
R 191 mm (7.50”)
Weight 216 kg *

* dry weight, including SAE #1 housing and SAE 355 flexible coupling

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
